[Gmsh] Usage of Transfinite Line Option for a Specific Case

Kamil ÖZDEN kamil.ozden.me at gmail.com
Fri Jul 25 22:01:29 CEST 2014


Dear All,

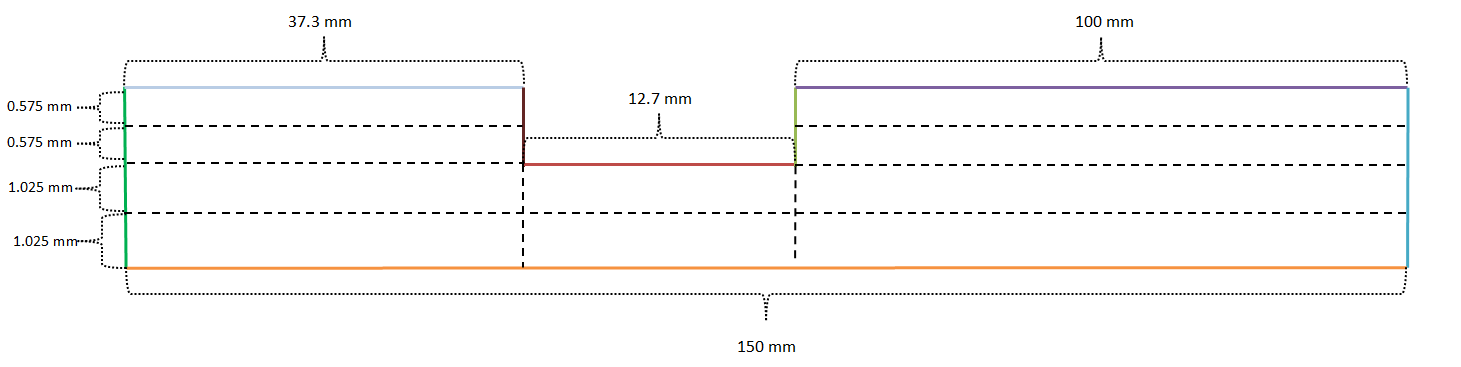

I want to generate a structured surface mesh as seen below:



There are 8 lines on this surface (each with different color) and the
dashed lines represent the mesh that I want to get. How can I divide the
lines (two side and bottom lines especially) as seen above? Can I do
this with TransfiniteLine option? If yes, how?

Regards,
Kamil
