[gl2ps] Edges in Polygons

[Christophe Geuzaine]

On 27 Sep 2011, at 09:20, <Daniel.Krajzewicz at dlr.de> wrote:

> Dear all,
>
> Thanks a lot for gl2ps, it’s really nice to be able to save vector graphics with almost no effort.
>
> I have a question: is there a switch/option or any other advices how triangle edges can be avoided when using triangle strips? I’ve enclosed an example which shows what I mean – the svg file was generated using gl2ps, the gif-file by reading the pixel buffer.

Hi Daniel,

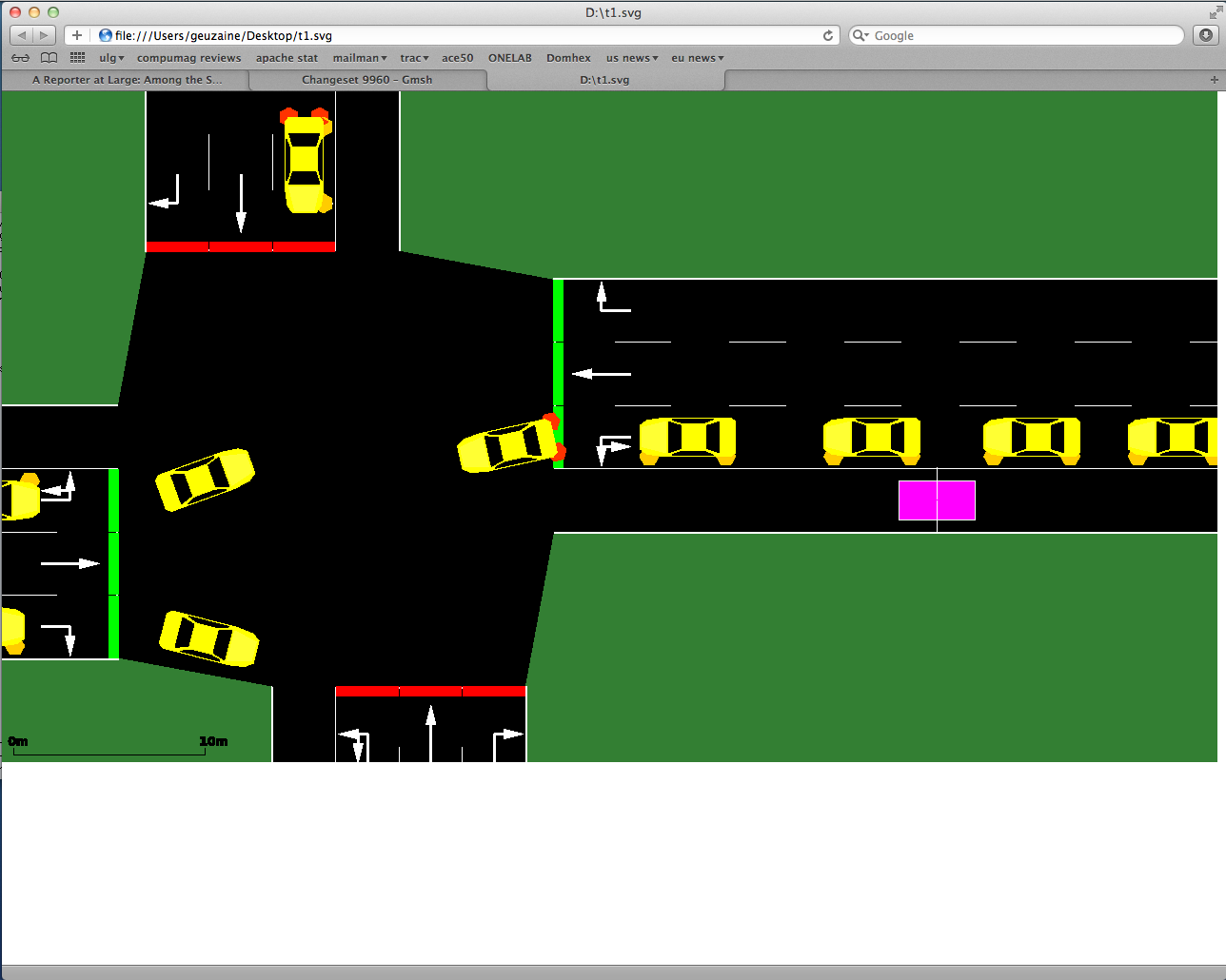

Viewing your .svg file with Safari or Firefox on my machine does not show the polygon edges (see attached screenshot). Maybe your svg reader applies some smoothing, which leads to these artefacts?

Cheers,

Christophe




>
> Sincerely,
> Daniel
>
>
> --
> Deutsches Zentrum für Luft- und Raumfahrt e.V.
> in der Helmholtz-Gemeinschaft
> Institut für Verkehrssystemtechnik
>
> Daniel Krajzewicz, Dipl.-Inf.
> Rutherfordstr. 2
> 12489 Berlin
>
> Tel.: +49/(0)30/67055-273
> Fax : +49/(0)30/67055-291
> E-Mail: Daniel.Krajzewicz at dlr.de
> Internet: http://www.dlr.de/ts
>
>
> <t1.gif><t1.svg>_______________________________________________
> gl2ps mailing list
> gl2ps at geuz.org
> http://www.geuz.org/mailman/listinfo/gl2ps

--
Prof. Christophe Geuzaine
University of Liege, Electrical Engineering and Computer Science
http://www.montefiore.ulg.ac.be/~geuzaine
