[gl2ps] Edges in Polygons

[Daniel.Krajzewicz at dlr.de]

Dear Christophe,

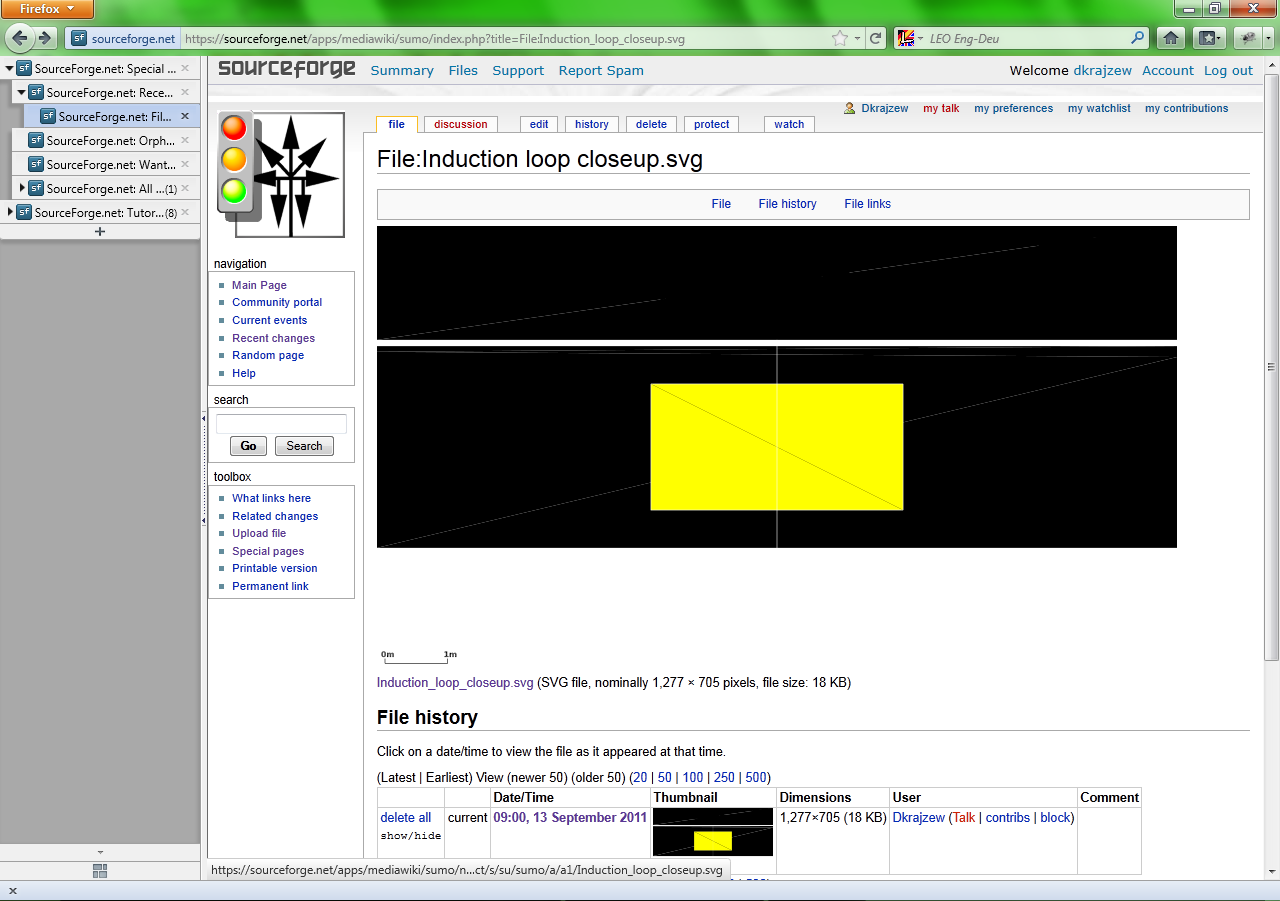

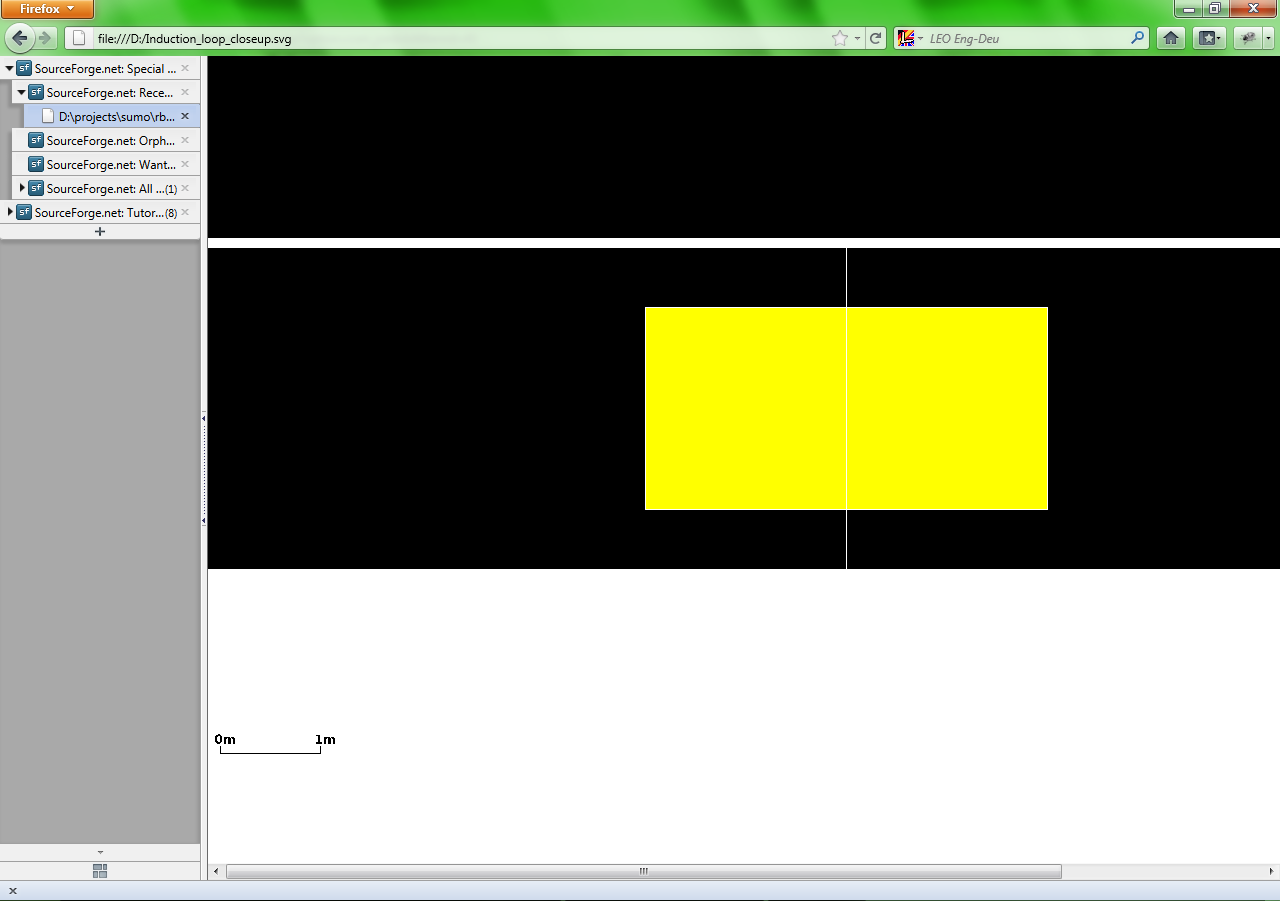

Oh, indeed. There seems to be a difference  between rendering the image directly and embedded into a HTML page - at least within my Firefox, see enclosed images. Inkscape also shows the outlines, btw.

But well, this does not seem to be related to gl2ps. Thank you very much for the help and sorry for bothering.

Sincerely,
Daniel


Von: Christophe Geuzaine [mailto:cgeuzaine at ulg.ac.be]
Gesendet: Mittwoch, 28. September 2011 08:18
An: Krajzewicz, Daniel
Cc: gl2ps at geuz.org
Betreff: Re: [gl2ps] Edges in Polygons


On 27 Sep 2011, at 09:20, <Daniel.Krajzewicz at dlr.de<mailto:Daniel.Krajzewicz at dlr.de>> wrote:


Dear all,

Thanks a lot for gl2ps, it's really nice to be able to save vector graphics with almost no effort.

I have a question: is there a switch/option or any other advices how triangle edges can be avoided when using triangle strips? I've enclosed an example which shows what I mean - the svg file was generated using gl2ps, the gif-file by reading the pixel buffer.

Hi Daniel,

Viewing your .svg file with Safari or Firefox on my machine does not show the polygon edges (see attached screenshot). Maybe your svg reader applies some smoothing, which leads to these artefacts?

Cheers,

Christophe

[cid:image001.png at 01CC7DB8.A32D2100]




Sincerely,
Daniel


--
Deutsches Zentrum für Luft- und Raumfahrt e.V.
in der Helmholtz-Gemeinschaft
Institut für Verkehrssystemtechnik

Daniel Krajzewicz, Dipl.-Inf.
Rutherfordstr. 2
12489 Berlin

Tel.: +49/(0)30/67055-273
Fax : +49/(0)30/67055-291
E-Mail: Daniel.Krajzewicz at dlr.de<mailto:Daniel.Krajzewicz at dlr.de>
Internet: http://www.dlr.de/ts


<t1.gif><t1.svg>_______________________________________________
gl2ps mailing list
gl2ps at geuz.org<mailto:gl2ps at geuz.org>
http://www.geuz.org/mailman/listinfo/gl2ps

--
Prof. Christophe Geuzaine
University of Liege, Electrical Engineering and Computer Science
http://www.montefiore.ulg.ac.be/~geuzaine
